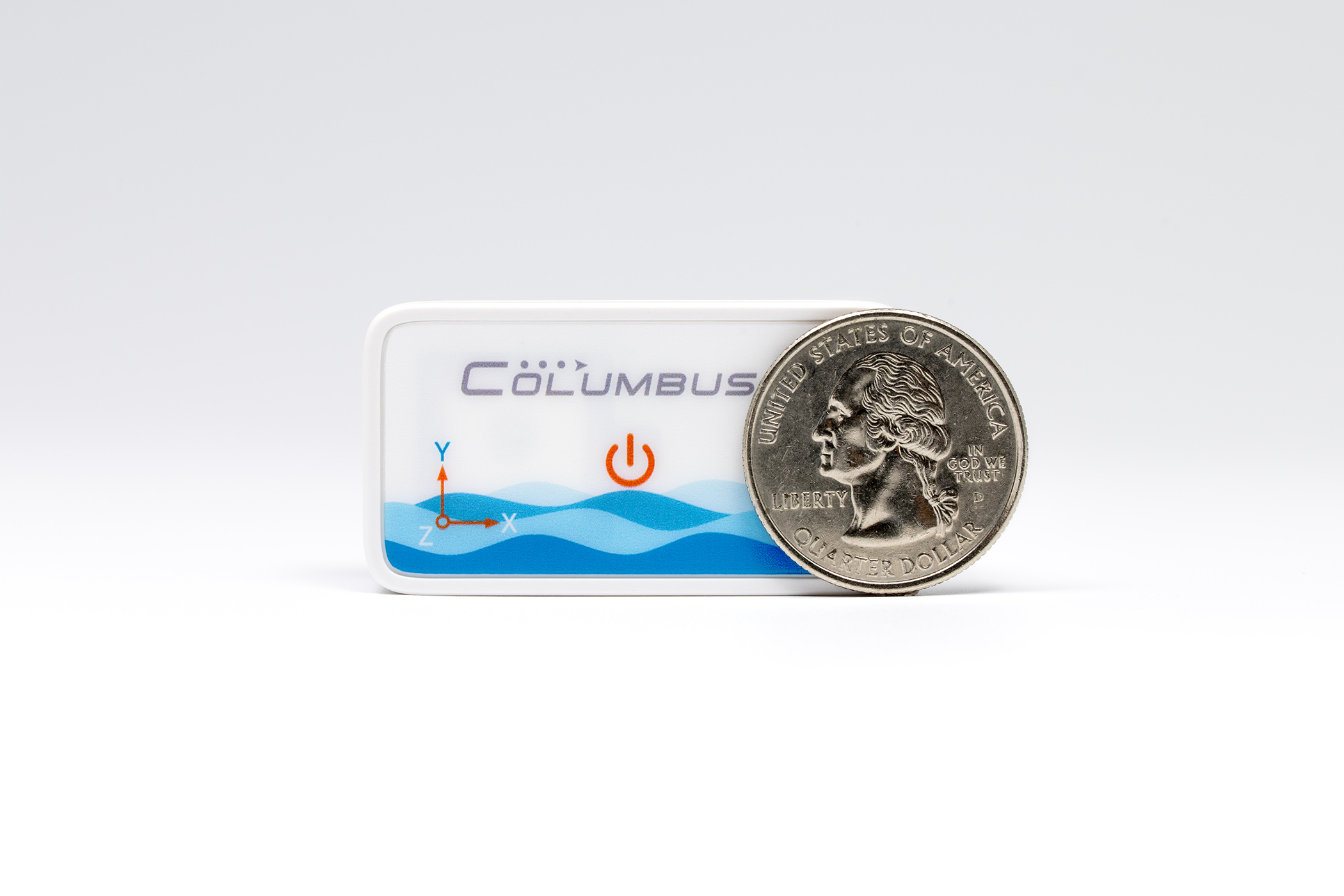

Size and Weight

Weight: 18 grams (0.64 ounces)

Ingress Protection

Rated IP68 (maximum depth of 1.5 meters up to 24 hours) under IEC standard 60529

Environmental Requirements

Operating ambient temperature: -20°C to 60°C (−4°F to 140°F)
Charging temperature: 0°C to 40°C (32°F to 104°F)
Relative humidity: 5% to 95% noncondensing
Operating altitude: tested up to 20,000 feet (6000 m)

GNSS Engine

u-blox M10 Engine
Supports EPS Gen 6 ULP positioning technology*
Constellations: GPS (L1C/A, 1575.42 MHz), BeiDou (B1I, B1C, 1561.098 MHz), Galileo (E1B/C, 1575.42 MHz), GLONASS (L1OF, 1602 MHz), QZSS (L1C/A, L1S, 1575.42 MHz), SBAS (L1C/A)

* EPS Gen 6 ULP stands for Enhanced Positioning System Generation 6 Ultra Low Power, a proprietary technology developed by Columbus.

GNSS Performance*

Horizontal Accuracy: 1.5 m / CEP (50%), 4.0 m / CEP (95%)
Cold Start: 28 s
Hot Start: 1 s

* Tested in an environment with a relatively open view of the sky

Measurable Range

GNSS
Maximum altitude: 80,000 m
Maximum speed: 1,800 km/h

G-Sensor
X, Y, Z Axes: ± 16 g

Storage Capacity

Storage Space
32MB (256Mbit)

Formats and Storage Capacity
FUSION: 720,000
CSV: 600,000
NMEA: 228,000
GPX: 153,000

Power and Battery

Continuous Recording: 40 hours (1 Hz continuous recording)
Interval Recording: Approximately 1 month (2-minute interval); approximately 2 months (10-minute interval)
Scheduled Recording: Approximately 3–6 months
Charging Time: Approximately 2.5 hours

Built-in: 400 mAh Lithium Polymer Battery
External Power Supply: DC 5 V / 230 mA

* Tested in environments with a relatively open view of the sky. Indoor environments and other locations with weak satellite signals may significantly affect battery life. Actual battery life in Scheduled Recording mode depends on the recording duration and related settings. Ambient temperature: 20°C.

System Requirements

Desktop
Windows 10 or later
macOS 15 or later
Linux Ubuntu 22.04 or later

Mobile
iOS 17 or later*
Android 11 or later*
* Accessed via OTG

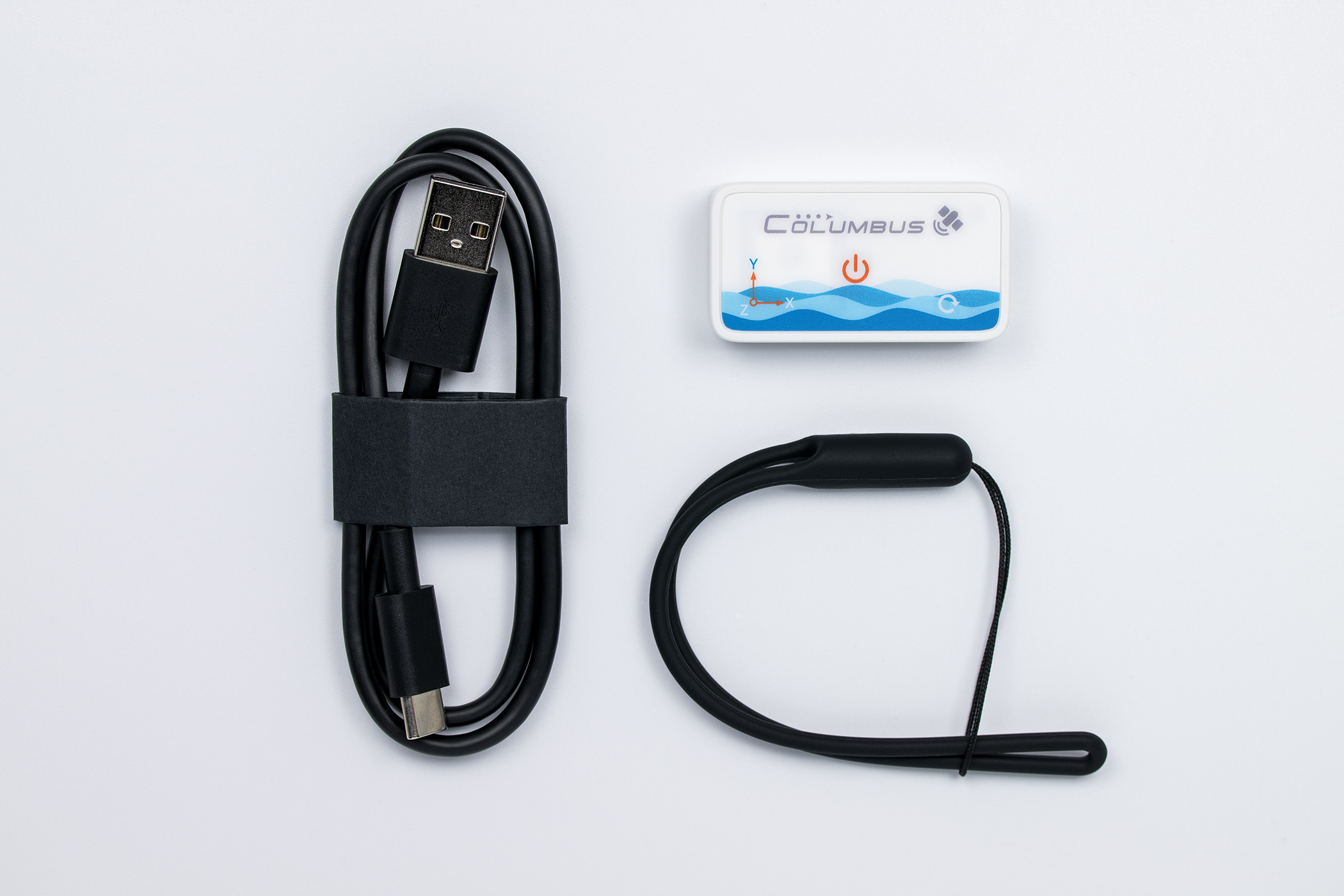

In the Box

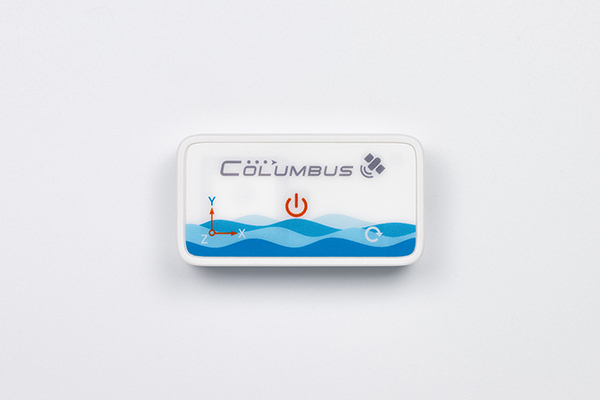

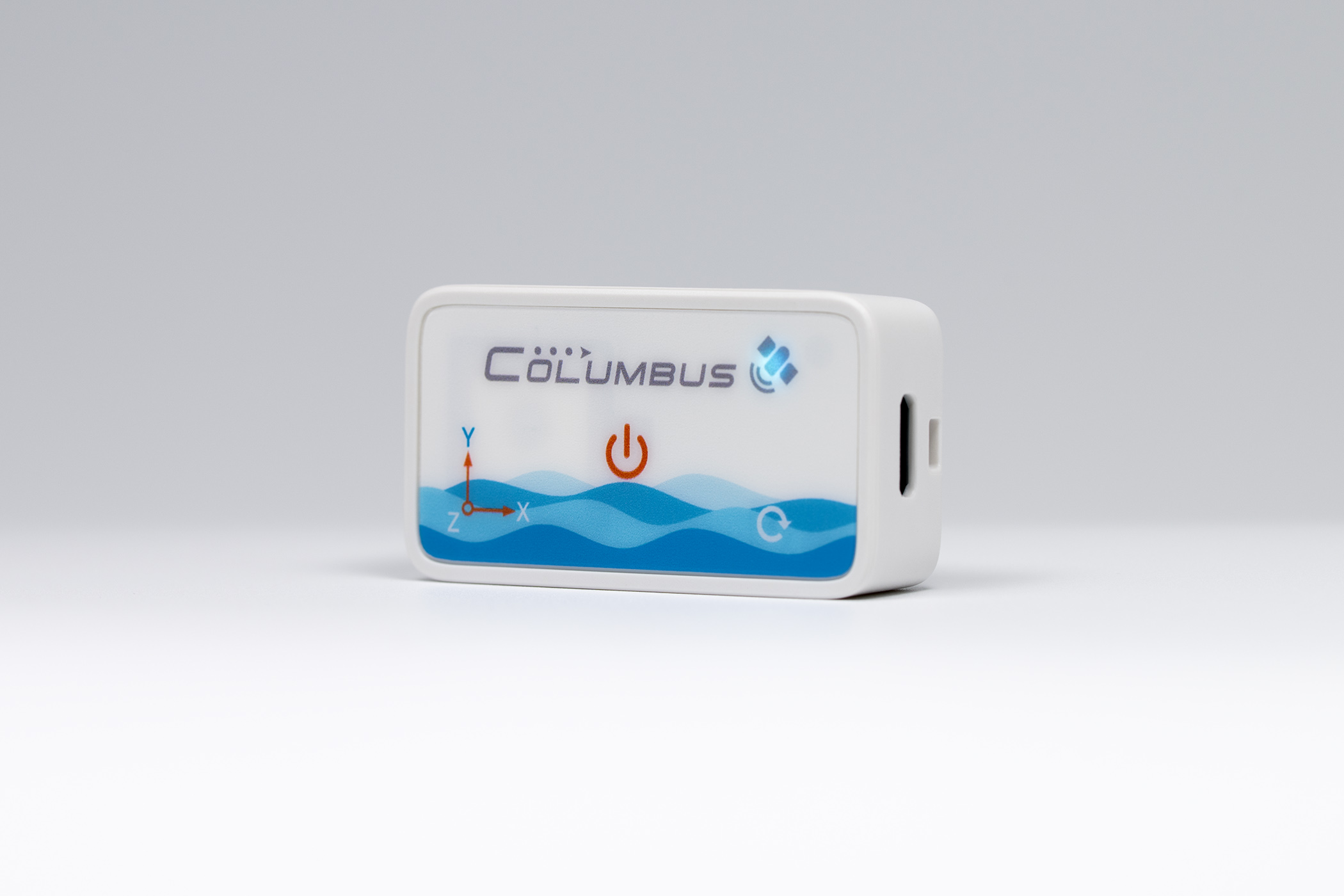

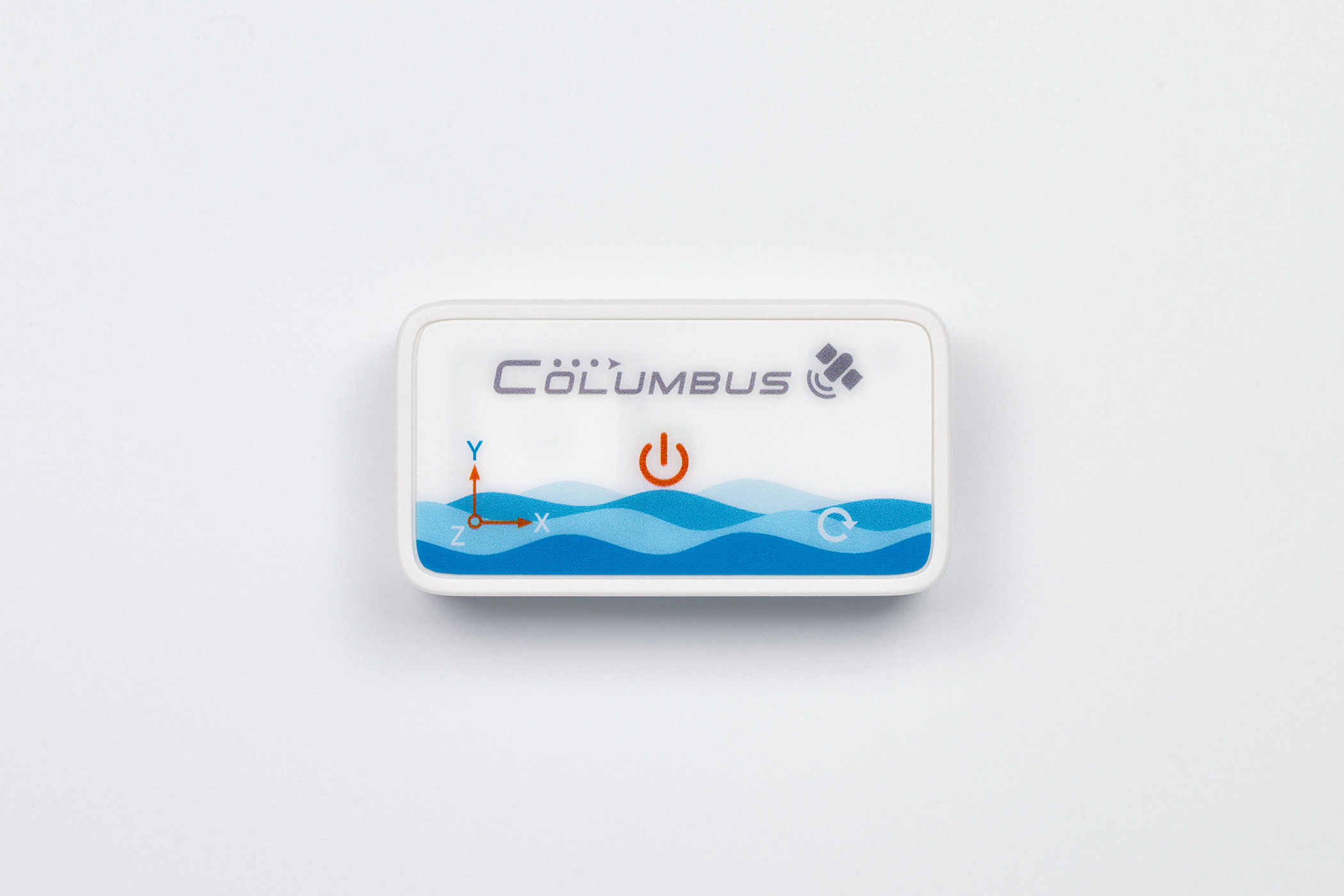

V-2000 Nano Motion Data Logger
USB-C Cable
Carrying Strap

Parts Description

Certifications
